Importing and Exporting Markups (Waypoints, Routes, Lines, Shapes, and Tracks)

Markups are Waypoints, Routes, Lines, Shapes, and Tracks saved to your onX Hunt account. You can use the Import and Export features in the onX Hunt Web Map to transfer this content to and from other mapping programs.

You can Export Markups with any level of Membership, but a Premium or Elite Membership is required to Import Markups.

*NOTE: You can currently only export Routes using Web Map.

Table of Contents:

  • Importing Markups (Waypoints, Routes, Lines Shapes, and Tracks) into the onX Hunt App
  • Exporting Markups (Waypoints, Routes, Lines, Shapes, and Tracks) from the onX Hunt App
  • Importing Markups (Waypoints, Routes, Lines, Shapes, and Tracks) into the onX Hunt Web Map.
  • Exporting Markups (Waypoints, Routes, Lines, Shapes, and Tracks) from onX Hunt Web Map.

You can import up to 3000 individual markups.

Importing Markups (Waypoints, Routes, Lines Shapes, and Tracks) into the onX Hunt App

KML imports are not supported in the onX Hunt App, but you can import KML files using the onX Hunt Web Map.

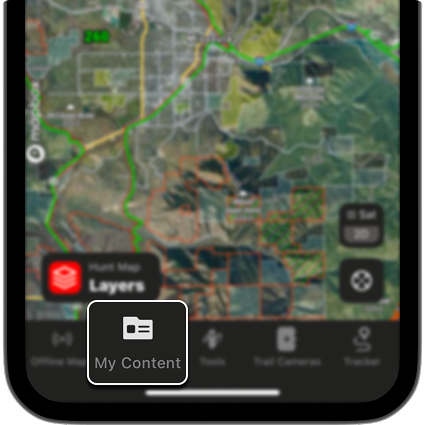

Tap the My Content Button at the bottom of the screen.

My Content Button Mobile Nav and Controls Hunt.png

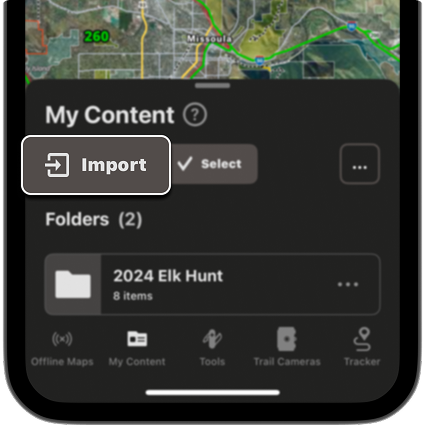

Tap the "Import" button at the top of the My Content Menu.

Import My Content Menu Hunt App.png

Select the GPX file you want to Import. You can Import one file at a time.

Exporting Markups (Waypoints, Routes, Lines, Shapes, and Tracks) from the onX Hunt App

*NOTE: The onX Hunt App exports Markups in GPX Files. If you need to export your Markups as a KML file, please use the onX Hunt Web Map.

Exporting Markups is a great way to share a large number of Markups at once with a hunting buddy, and can also be used to back up your data. Before backing up your Markups, there are a few things to be aware of:

  • Tracks exported as KML files will be converted into Lines. We recommend you Export Tracks as GPX files.
  • Lines and Areas exported as GPX files will be converted into Tracks. We recommend you export Lines and Areas as KML files. Exporting KML files is not available in the onX Hunt App, so if you need to export Lines and Areas, please use the onX Hunt Web Map on your computer.

Tap the My Content button at the bottom of the screen.

My Content Button Mobile Nav and Controls Hunt.png

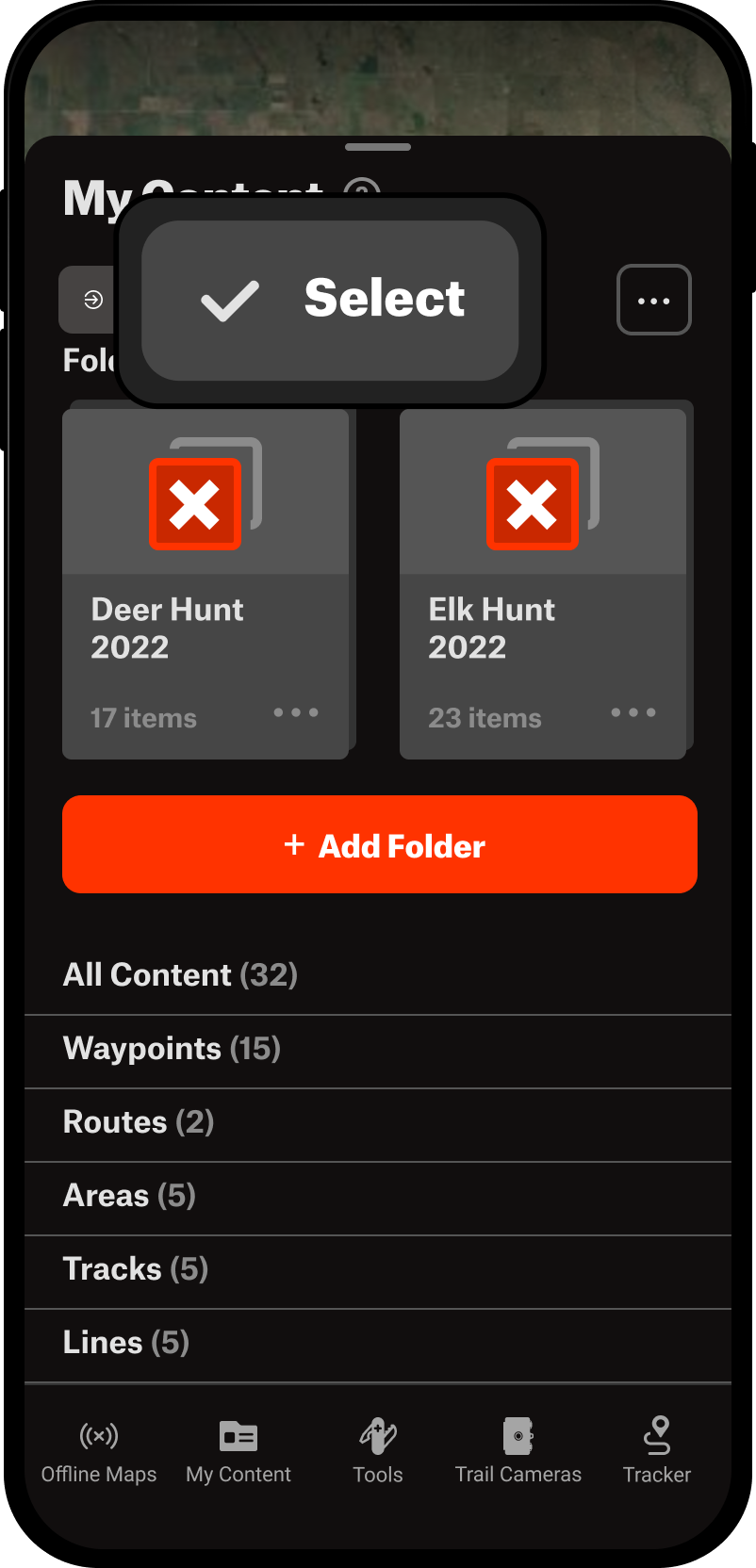

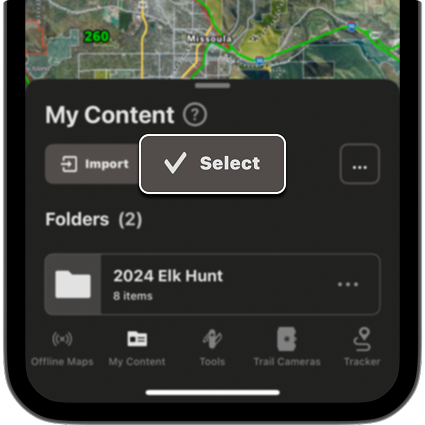

Tap the Select button at the top of the menu.

Select My Content Menu Hunt App.png

Select the Markups you want to Export, then swipe left on the bottom row of buttons and tap "Export."

Swipe Left to Export Select Content Menu Hunt App.png

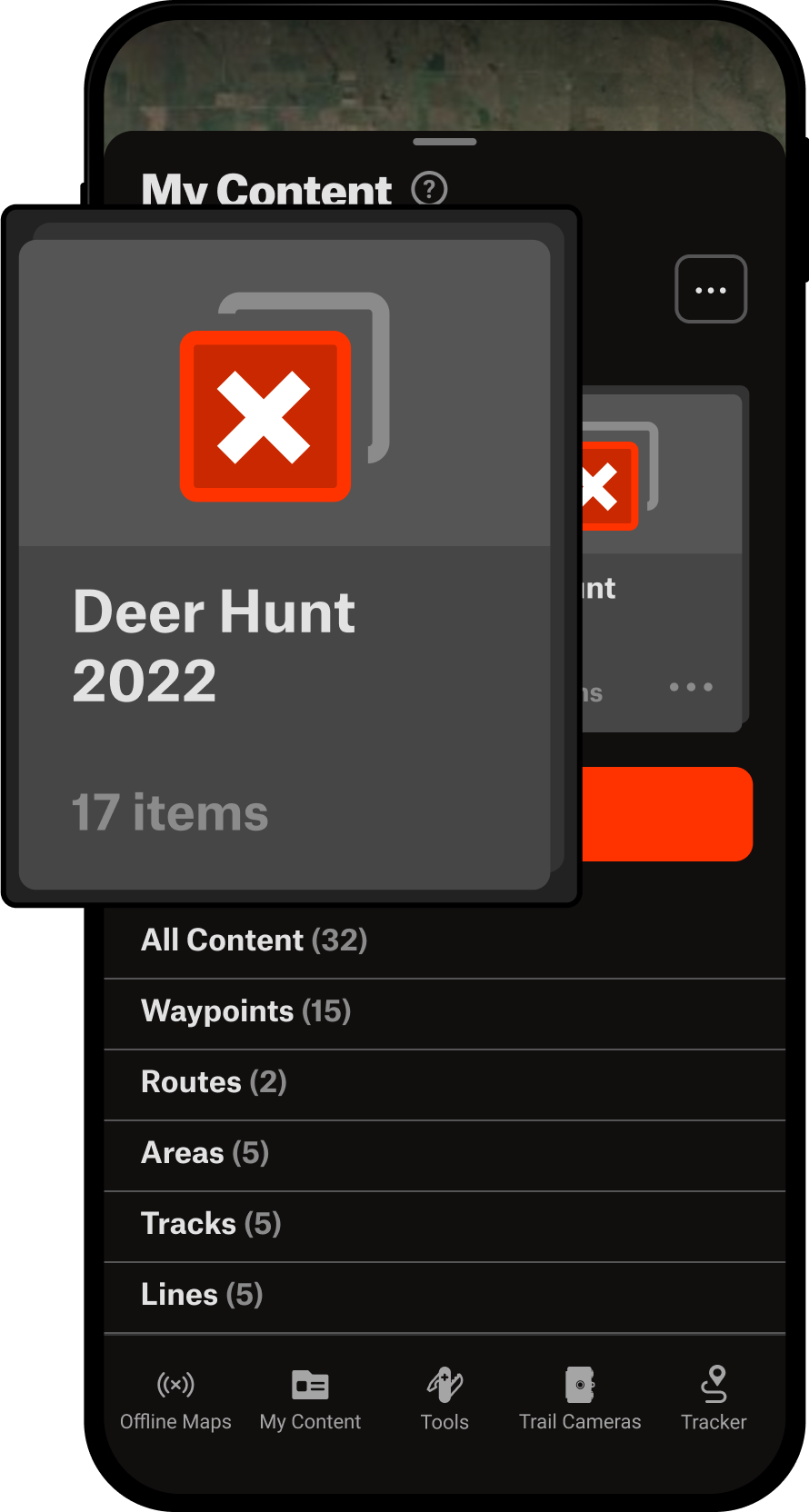

You can also Export all content in a Folder at once. Tap the Folder you want to export in the My Content Menu.

Folders My Content Menu Hunt App.png

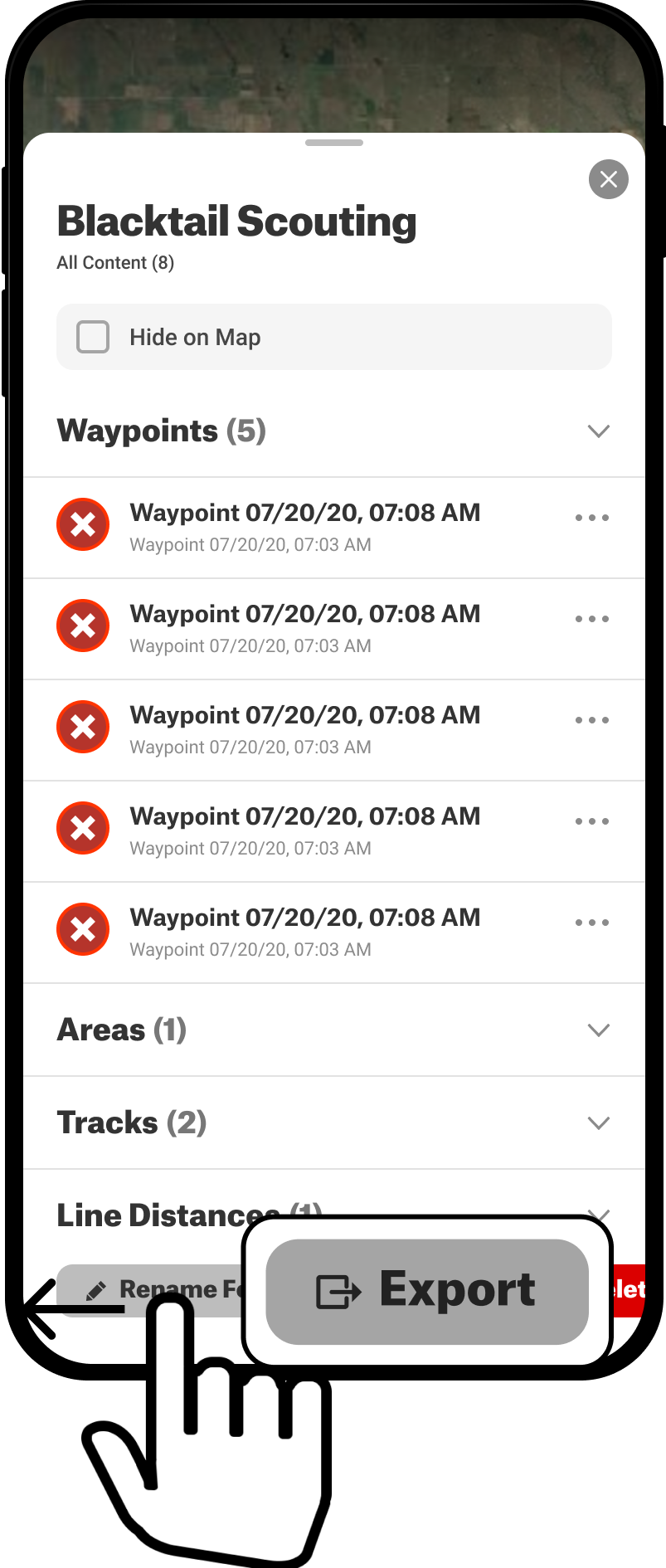

Swipe left on the bottom row of buttons and tap "Export."

Swipe Left to Export Folder Card Hunt App.png

*NOTE: Tracks exported as KML files will become lines when you import them. Likewise, Lines and Areas exported as GPX files will become Tracks when you import them.

Importing Markups (Waypoints, Routes, Lines Shapes, and Tracks) into onX Hunt

You can upload GPX and KML files under 4MB into your onX Hunt account using the Import feature in Web Map on your desktop or laptop computer.

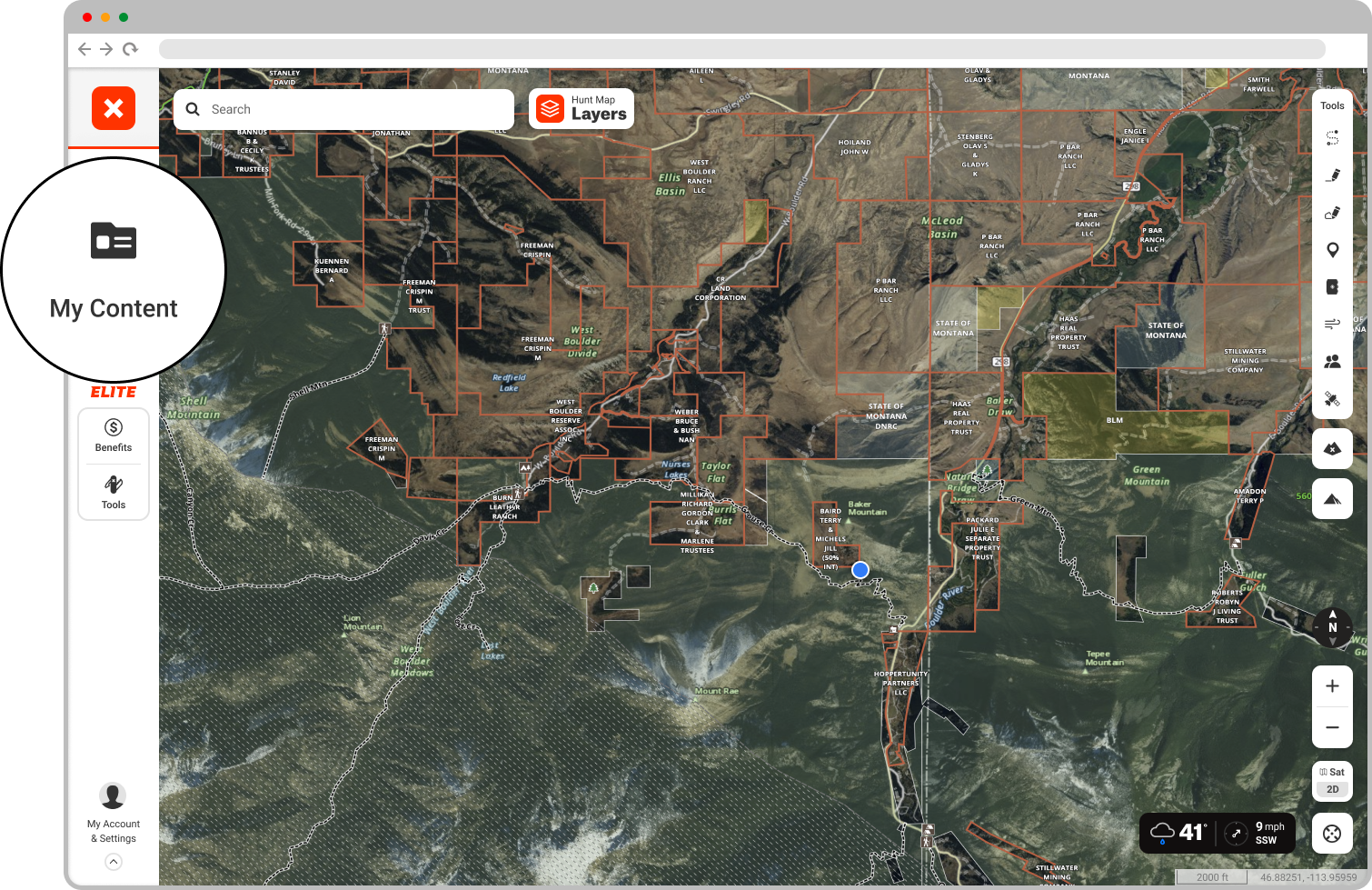

Click the My Content Button on the left side of the screen.

My Content Button Web Nav and Controls Hunt.png

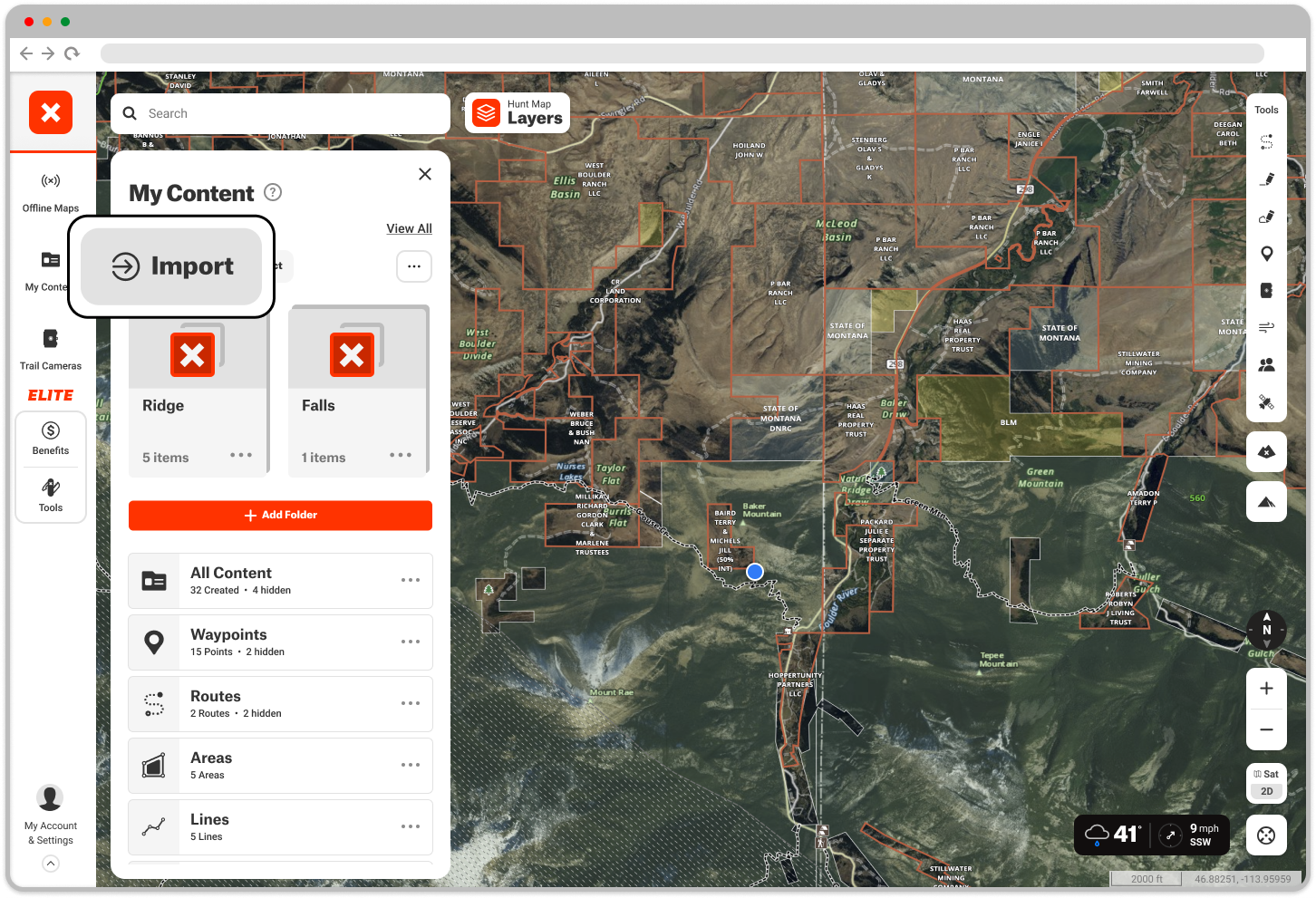

Click "Import" at the top of the My Content Menu.

Import My Content Menu Hunt Web.png

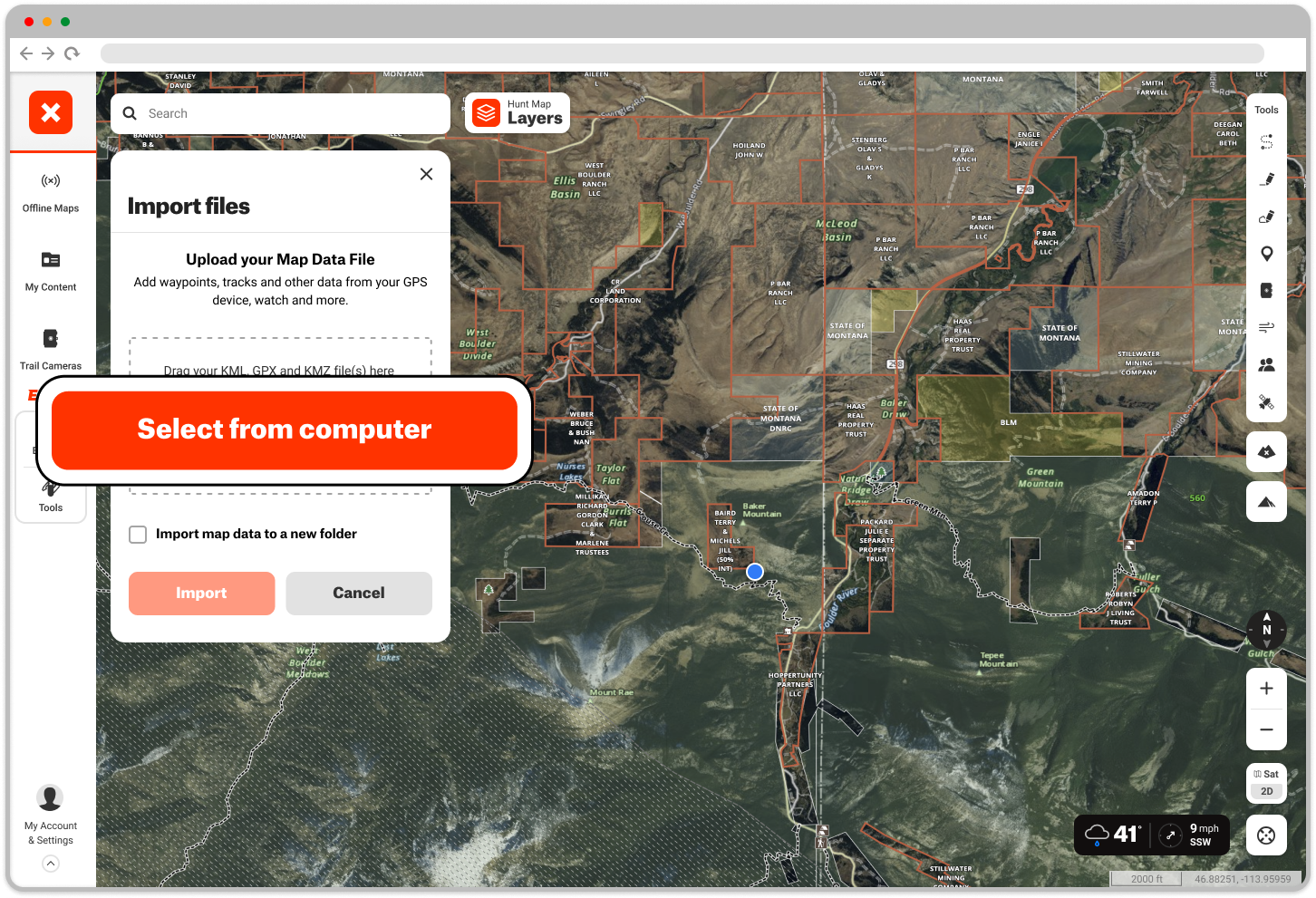

Click "Select from computer" and use your computer's file explorer to select a KML or GPX file.

Select from computer Import Files Hunt Web.png

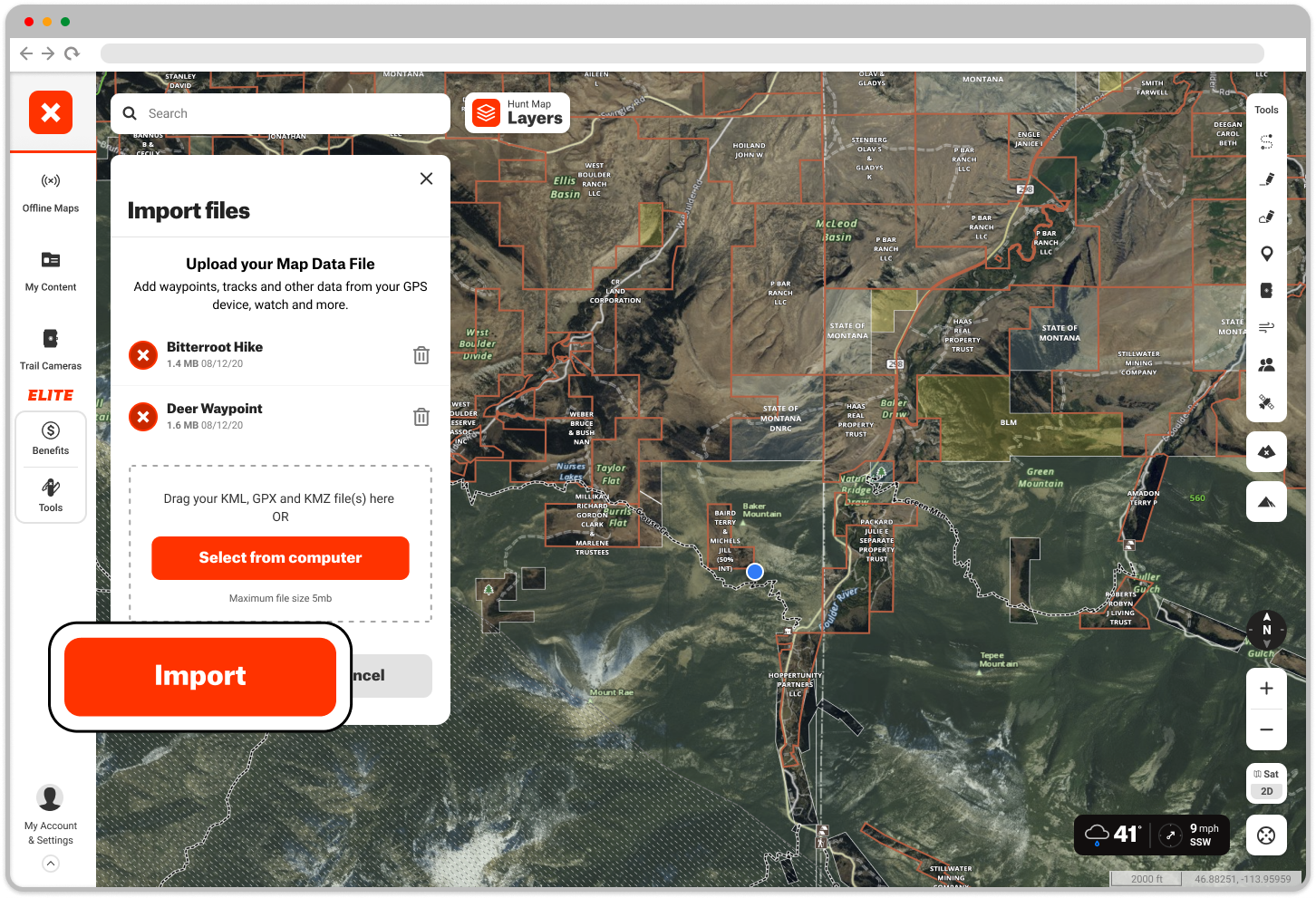

To create a new Folder for your imported Markups, click the checkbox next to "Import map data to a new folder." When you're ready, click "Import."

Import Import Files Hunt Web.png

The uploaded file is listed in the My Content Menu along with all of your other Markups. If your Markups do not show up after importing, refresh your web browser.

Exporting Markups (Waypoints, Routes, Lines, Shapes, and Tracks) from the onX Hunt Web Map

Exporting Markups is a great way to share a large number of Markups at once with a hunting buddy, and can also be used to back up your data. Before backing up your Markups, there are a few things to be aware of:

  • When exporting using Web Map, only the location and name of the Markup will be saved. onX customizations like icons and colors are not saved.
  • Tracks exported as KML files will be converted into Lines. We recommend you Export Tracks as GPX files.
  • Lines and Areas exported as GPX files will be converted into Tracks. We recommend you export Lines and Areas as KML files.

Click the My Content Button on the left side of the screen.

My Content Button Web Nav and Controls Hunt.png

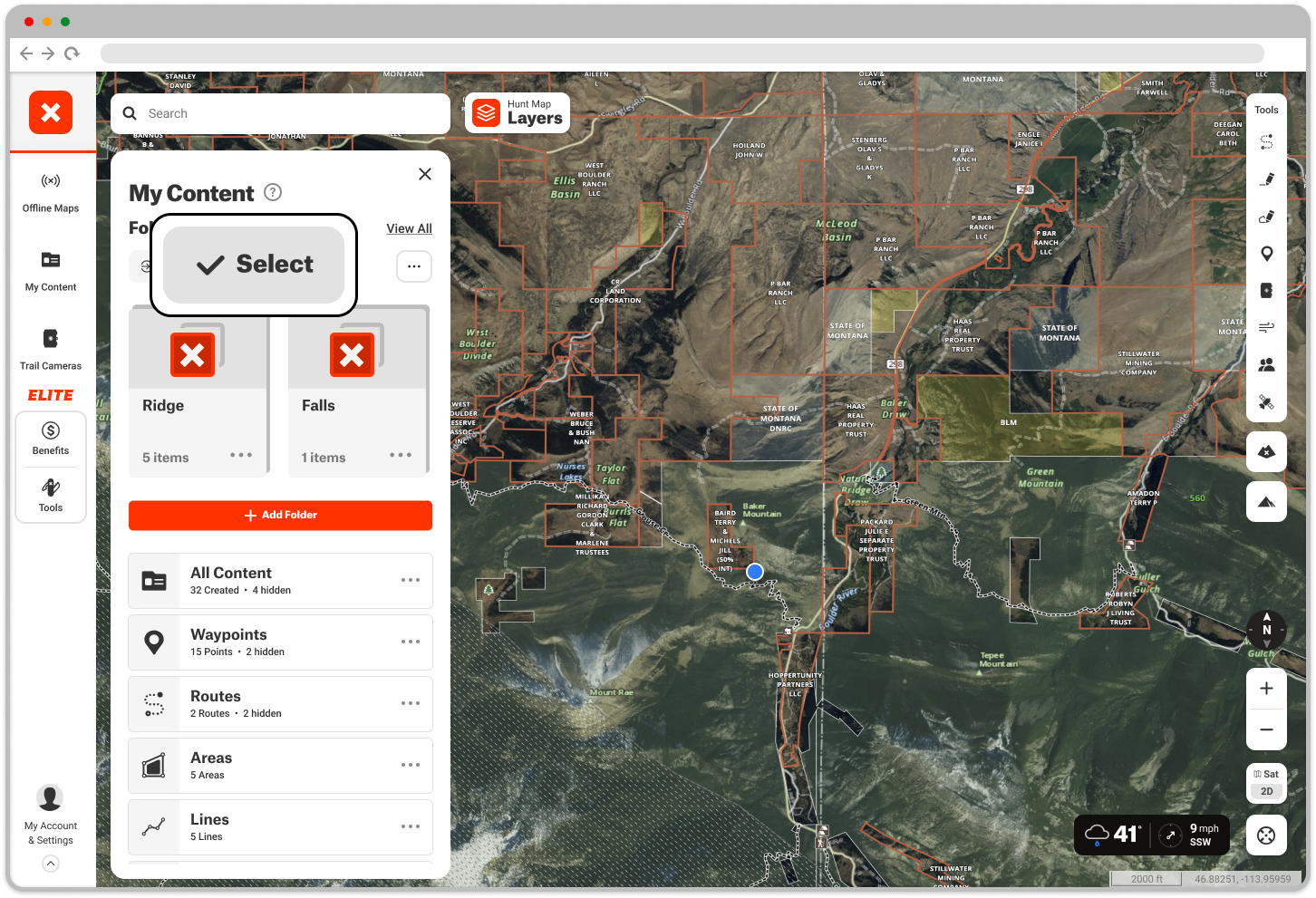

Click "Select" at the top of the My Content Menu.

Select Markups My Content Menu Hunt Web.png

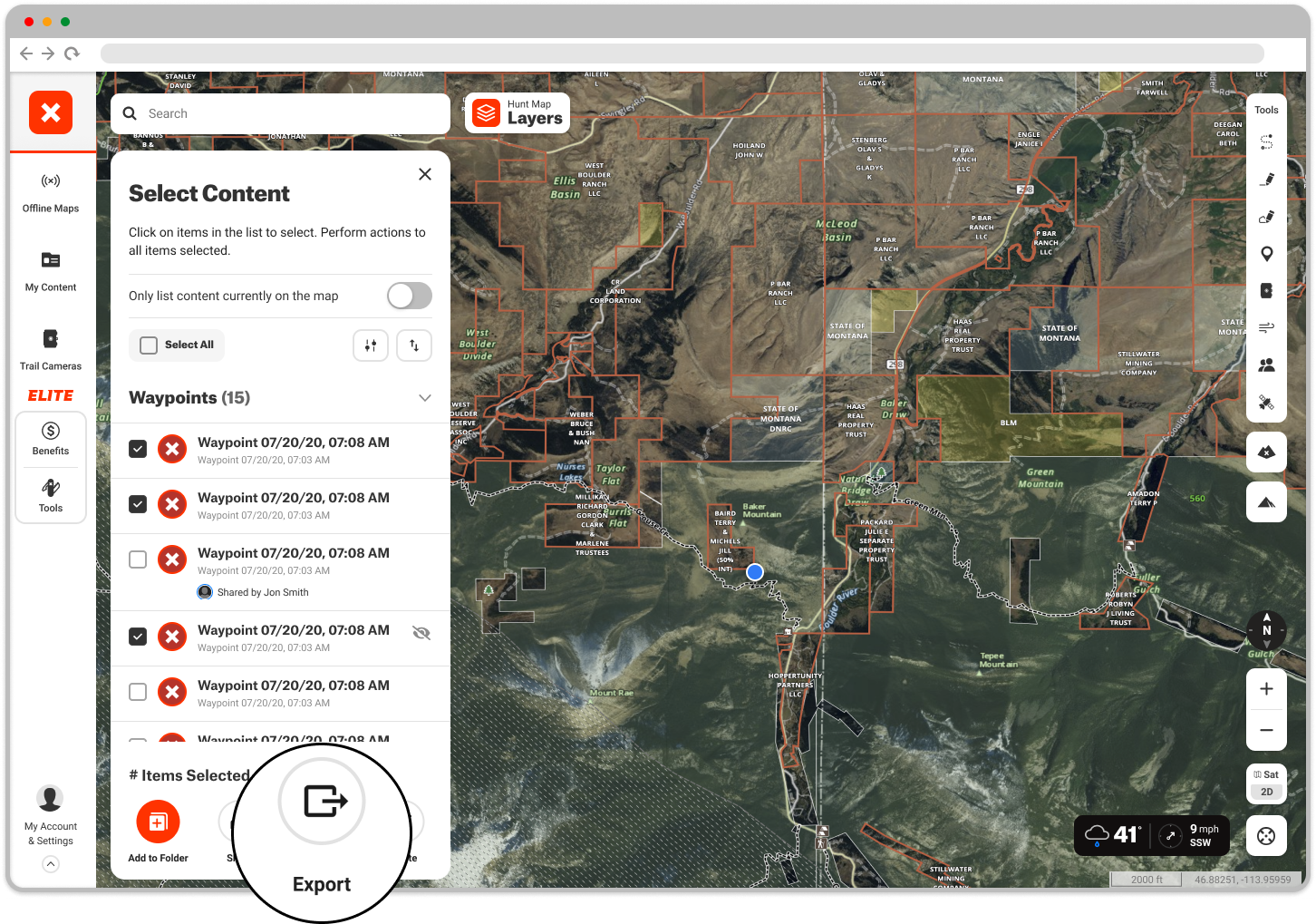

Click the checkboxes next to the Markups or Folders you want to export. To export all content, click "Select All." When you're done selecting Markups, click "Export" at the bottom of the menu.

Export Select Content Menu Hunt Web.png

Choose either KML or GPX format, then click "Save."

*NOTE: Tracks exported as KML files will become lines when you import them. Likewise, Lines and Areas exported as GPX files will become Tracks when you import them.
