Editing and organizing Markups

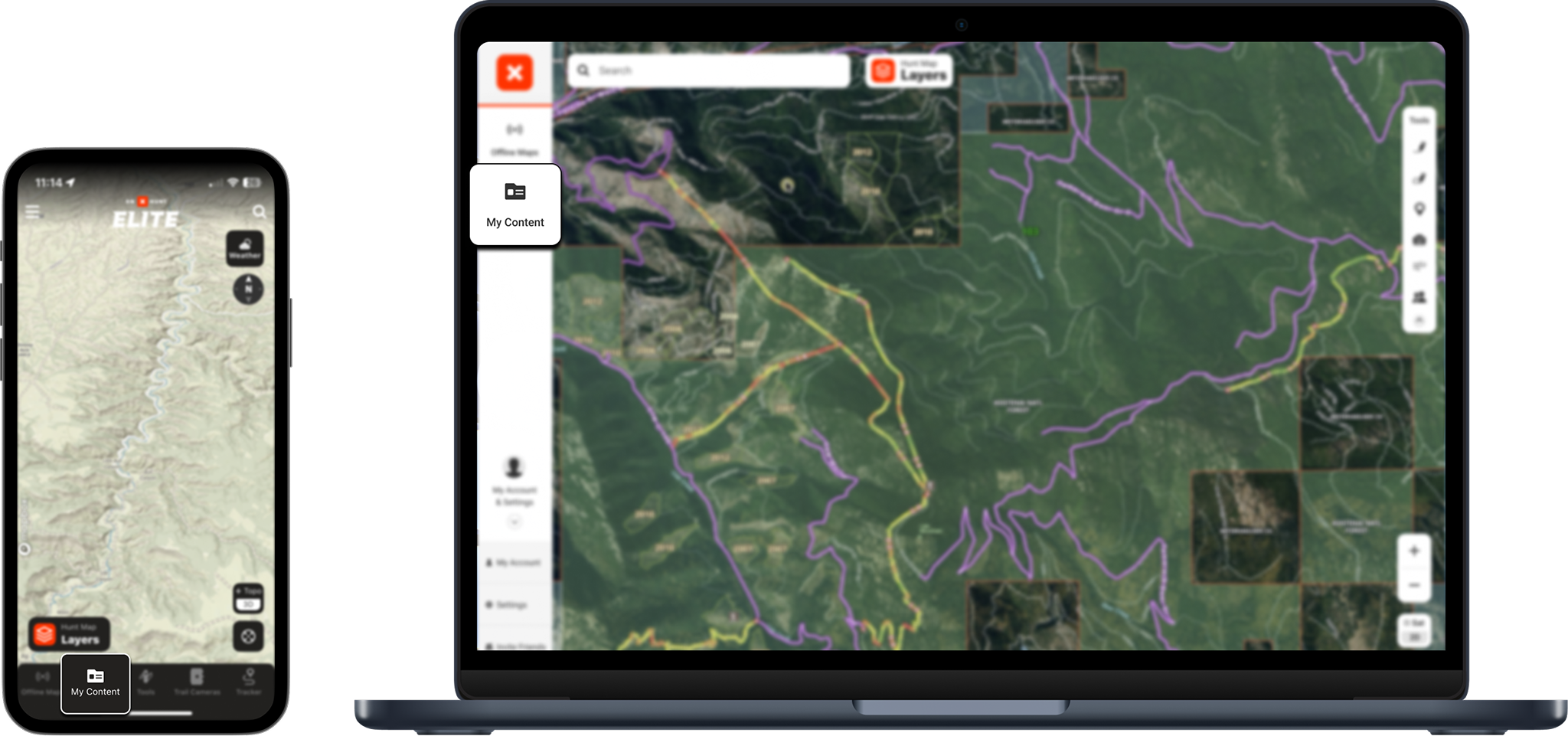

Waypoints, Routes, Lines, Shapes, and Tracks you create in onX Hunt can be edited, organized, and managed from the My Content menu—in the bottom toolbar in the App and the left toolbar in the Web Map.

Editing Markups

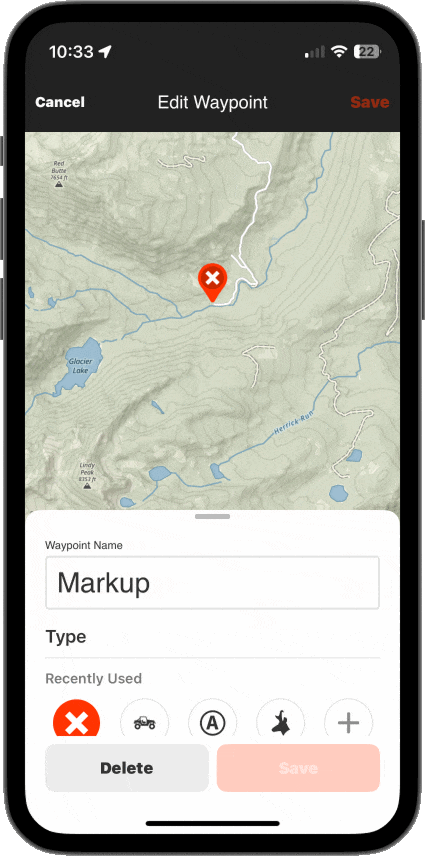

1. Tap the ellipsis next to a Markup in My Content and tap Edit, or tap a Markup on the map and select Edit from the bottom menu.
2. Swipe the Edit card up to reveal all options, make your changes, and tap Save.

All Markups share these editable fields:

• Name: the displayed name of the Markup.
• Folders: add the Markup to a folder.
• Notes: add a description.

Waypoints also include:

• Type: tap the + symbol above "More" to view available icons.
• Color: swipe left to view all available colors.
• Photos: tap "Add" to take a photo or upload one from your library.

Lines, Tracks, and Routes also include:

• Line Color: change the color.
• Style: choose between solid and dashed.
• Weight: change the thickness of the line.

Area Shapes also include:

• Area Color: the fill color of the shape overlay.
• Line Color: the border color.
• Style: choose between a solid and dashed border.
• Weight: change the thickness of the border.

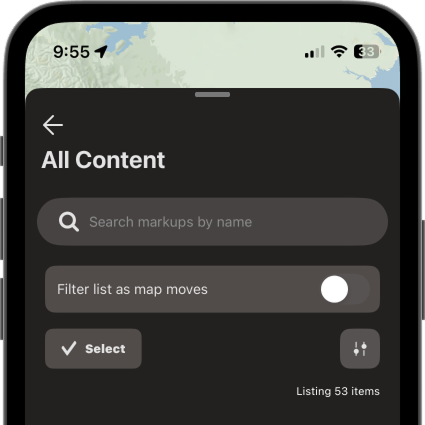

Sorting, filtering, and searching

Open the My Content menu and tap a Markup category (All Content, Waypoints, Routes, etc.) to access search and filter options.

• Use the Search bar to find a Markup by name.
• Toggle Filter list as map moves on to show only Markups visible on the current map view.

Tap the Filter button to access additional options:

Filters:

• Shared by: show only Markups shared by a specific user.
• Waypoint type: show only Markups with the same icon type.
• Waypoint color: show only Markups with the selected color.

Sort order :

• Type: list content by type (Waypoints, Routes, Tracks, Areas, Lines).
• New to Old / Old to New: sort by creation date.
• Ascending / Descending: sort alphanumerically.

Organizing with Folders

Use Folders to organize Markups from the same trip or area. Folders you create appear above your saved Markup categories in the My Content menu.

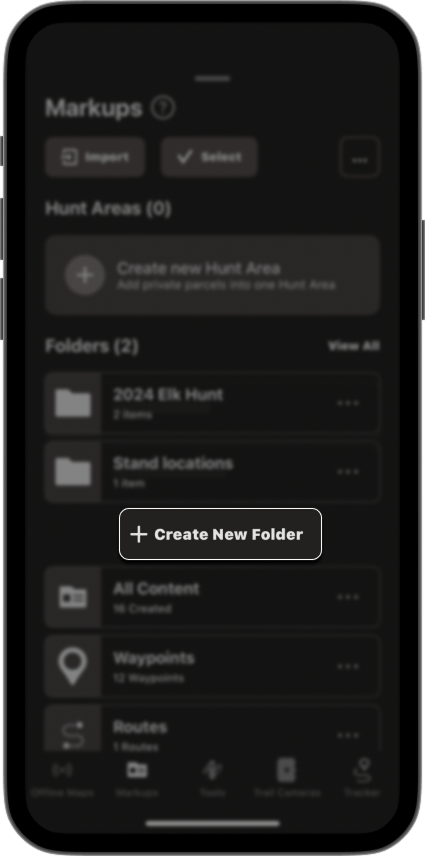

Create a Folder:

1. Open the My Content menu and swipe it up to fill your screen.
2. Tap Create New Folder.

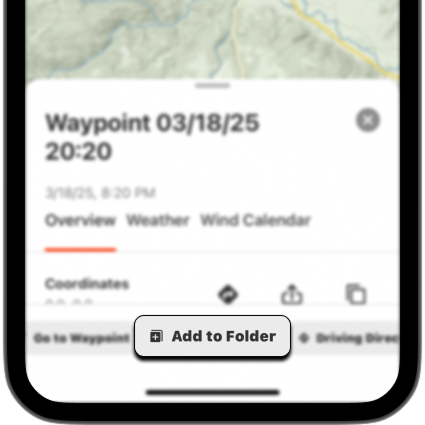

Add a single Markup to a Folder:

• Tap a Markup on the map, swipe left on the bottom options, and tap Add to Folder.
• Alternatively, tap the ellipsis to the right of a Markup in your My Content list and select Add to Folder.

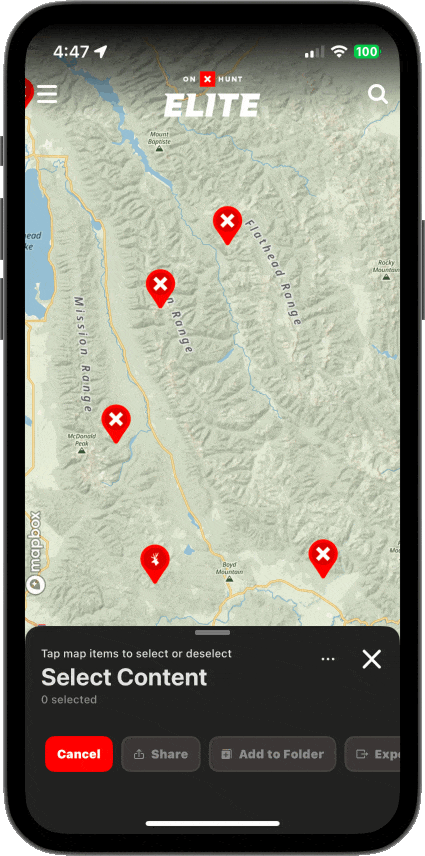

Add multiple Markups to a Folder:

1. Open the My Content menu and tap Select.
2. Tap the three dots in the upper-right corner and tap Select all content in map view, or tap individual Markups on the map to select them.
3. Tap Add to Folder.

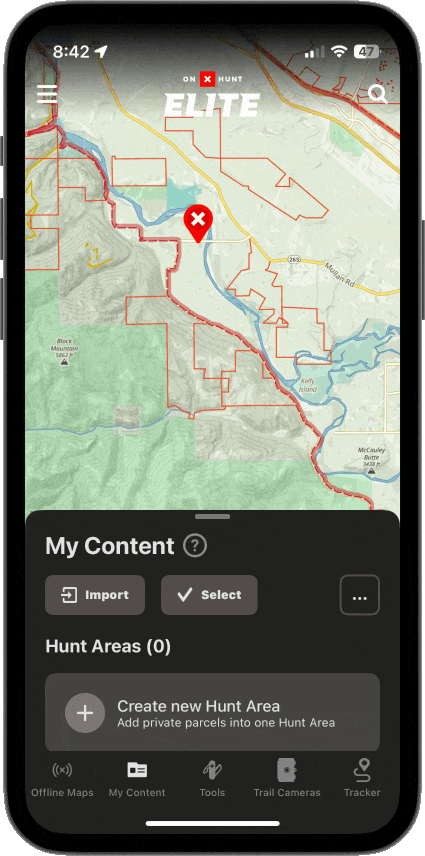

Alternatively, swipe the My Content menu up, check the boxes next to desired Markups, and tap Add to Folder.

Hiding and showing Markups

Markups can be hidden individually, in bulk, or by Folder to reduce on-screen clutter. A hidden symbol next to a Markup or category means that content is currently hidden—tap it to show the related Markups.

Hide a single Markup:

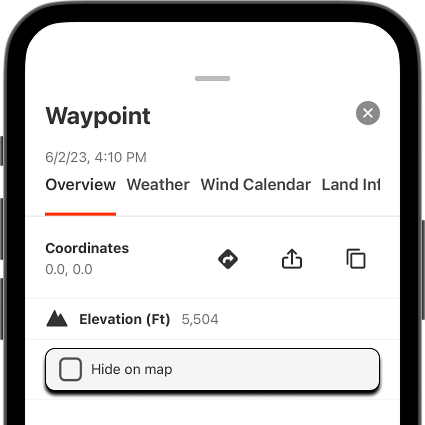

• Tap a Markup on the map, swipe the menu up, and tap Hide on map.
• Alternatively, tap the ellipsis to the right of a Markup in My Content and tap Hide on map.

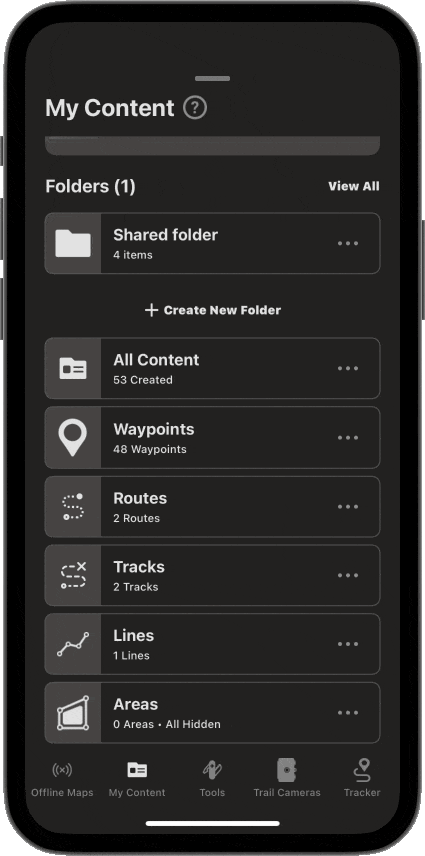

Hide multiple Markups:

1. Open the My Content menu and swipe it up.
2. Tap the ellipsis to the right of a category name.
3. Tap Hide all.

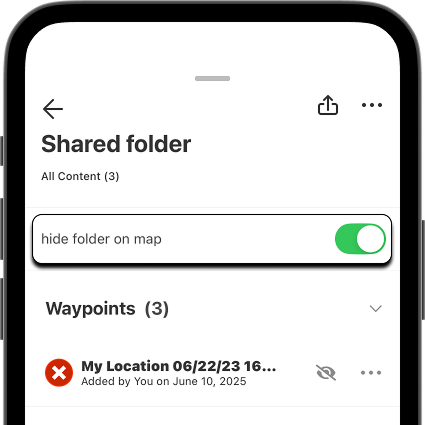

Hide a Folder:

1. Open the My Content menu and tap a Folder.
2. Toggle Hide folder on map on to hide all Markups in that Folder.

Learn how to share Markups with other onX Hunt users.
